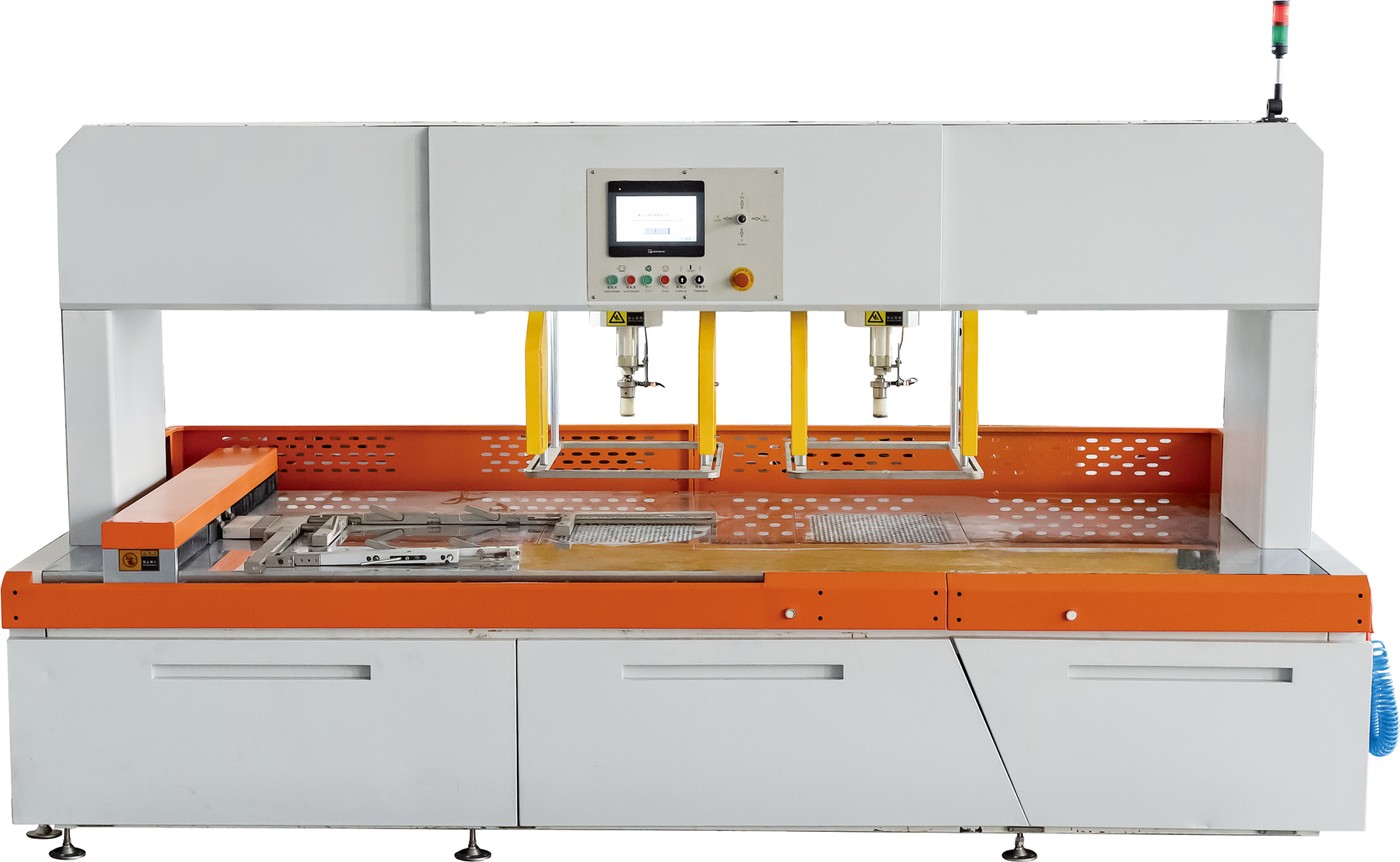

Single / Double Station Automatic Waste Stripping & Blanking Machine
The YC-920C/1080C automatic waste stripping and blanking machines (single or double station) remove edge waste, inner scrap and blank finished sheets automatically after die cutting — the fine-finishing step that turns manual stripping into a clean, fast, labor-saving process.
Request a Quote WhatsApp UsKey Features
- Single-station and double-station options
- Automatic edge waste, hole scrap removal
- Blanking of finished sheets
- Greatly reduces manual labor
- Improves finished product quality
Machine in Operation
00:58
The YC-920C/1080C in production: the die-cut sheet is loaded, the stripping station pushes out the edge waste and inner scrap, and the blanking station presses the finished blanks down into a neat pile — one cycle replaces the manual picking that normally takes several people per shift. Rated 15–22 cycles/min, working pressure 70 bar, sheets from 550×400 mm up to 920×680 mm (920C) or 1080×780 mm (1080C), blanks from 30×30 mm.
Single-station and double-station versions are both available — tell us your sheet size and target output and we will confirm which one fits. If you want to see a specific job, material or speed setting, we can run it live on WhatsApp video.
Get the Best Price on the YC-920C/1080C
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-920C | YC-1080C |
|---|---|---|
| Max. Sheet Size (X×Y) | 920×680 mm | 1080×780 mm |
| Min. Sheet Size (X×Y) | 550×400 mm | 650×450 mm |
| Max. Pile Height | 100 mm | 100 mm |
| Min. Pile Height | 40 mm | 40 mm |
| Working Table Height | 850 mm | 850 mm |
| Max. Blank Size | 420×420 mm | 450×450 mm |
| Min. Blank Size | 30×30 mm | 30×30 mm |
| Blanking Speed | 15–22 cycles/min | |
| Max. Working Pressure | 70 bar | |
| Air Consumption | 3 L/min | |
| Total Power | 5 kW, 380V | |
| Net Weight | 2800 kg | 3400 kg |
| Machine Dimensions (L×W×H) | 3600×1750×1950 mm | 3800×1850×1950 mm |
| Packing Dimensions (L×W×H) | 3800×1950×2250 mm | 4000×2200×2250 mm |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
Related Machines

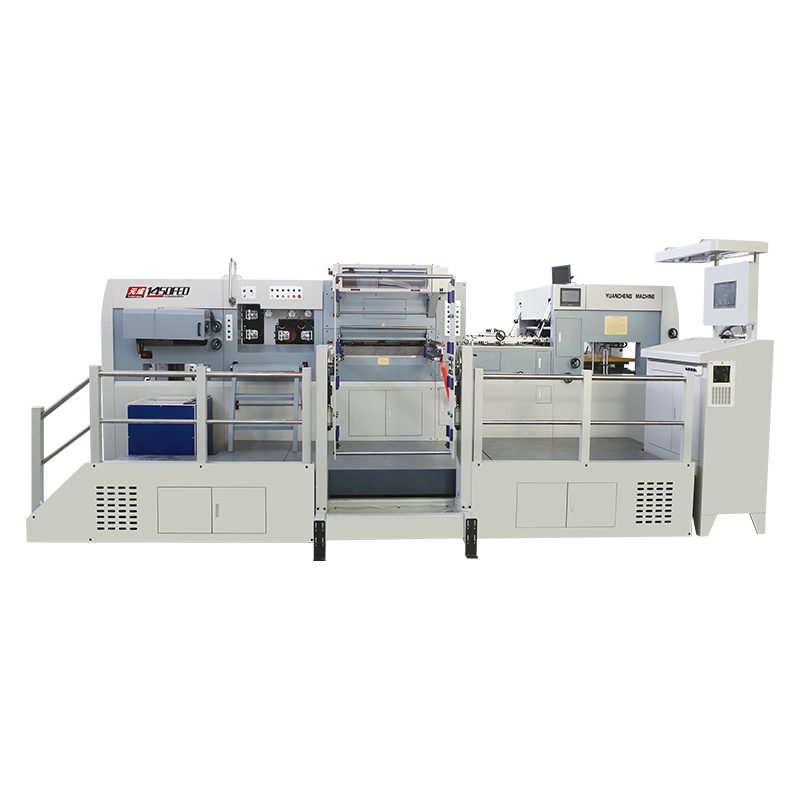

Fully Automatic Deep Embossing Die Cutting & Hot Foil Stamping Machine
