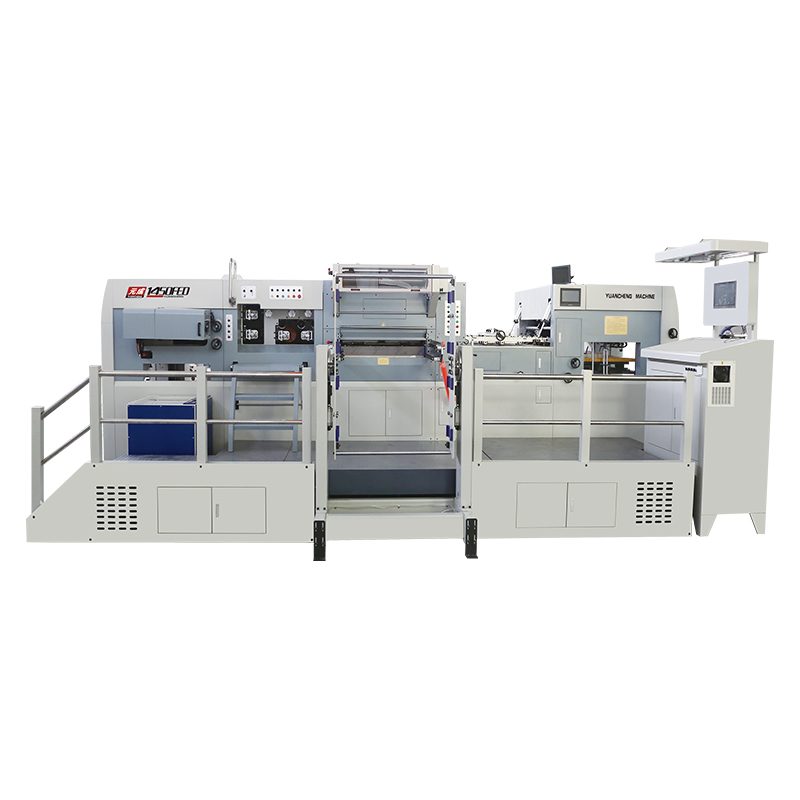

Fully Automatic Flatbed Die Cutting & Hot Foil Stamping Machine
Two variants: YC-1450FH — foil stamping & die cutting · YC-1450FED — deep embossing + foil stamping
The YC-1450FH / YC-1450FED series combines precise flatbed die cutting with hot foil stamping. The FH variant delivers premium foil finishing for folding cartons and labels; the FED variant adds deep embossing (up to 7 mm on corrugated board) for luxury packaging. 1000T pressure, 20 independent temperature zones and Japanese servo foil feeding ensure consistent quality at production speed.
Request a Quote WhatsApp UsKey Features
- Flatbed die cutting + hot foil stamping combination
- High-precision registration system
- Imported key components and PLC control
- Pneumatic lock-up and overload protection
- Automatic delivery with neat stacking
Machine in Operation
00:52
The YC-1450FED running at 4,757 sheets/hour: feeding, foil stamping, deep embossing and sheet delivery, followed by the foiled and embossed cartons it produces. Ask us on WhatsApp for a live video call or samples.
Get the Best Price on the YC-1450FH / YC-1450FED
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1450FH | YC-1450FED |
|---|---|---|
| Max. Sheet Size | 1450×1100 mm | 1450×1100 mm |
| Min. Sheet Size | 550×450 mm | 550×450 mm |
| Max. Foil Size | 1450×960 mm | 1450×960 mm |
| Paperboard Range | 100–2000 g/m² | 100–2000 g/m² |
| Embossing Depth (corrugated board) | ≤ 7 mm | ≤ 7 mm |
| Ordinary Speed | 5000 sheets/h | 5000 sheets/h |
| Ordinary Embossing Depth | ≤ 0.5–1 mm | — |
| Hot Stamping Accuracy | — | ≤ ± 0.1 mm |
| Overall Dimensions | 9305×4738×2750 mm | 9305×4738×2750 mm |
| Electrified Foil Feeding System | Longitudinal 3 shafts, lateral 2 shafts (anodized aluminum foil servo system) | |
| Max. Foil Reel Diameter | Longitudinal 3 shafts: ø200 mm; lateral 2 shafts: ø260 mm | |
| Max. Electrified Foil Feeding | Foil 3: 800 mm; Foil 2: 620 mm (longitudinal) | |
| Temperature Control Zones | 20 independent zones | |
| Max. Working Speed | 6000 sheets/h | 6000 sheets/h |
| Gripper Margin | 5–12 mm | 5–12 mm |
| Max. Working Pressure | 1000 T | 1000 T |
| Total Power | 60 kW | 60 kW |
| Total Weight | 31 T | 31 T |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
Detailed Unit Description
Full-Automatic Foil Stamping System
Adopts the latest technology: 20 independently controlled temperature zones, with 3 longitudinal / 2 lateral foil shafts (standard). The vertical foil stamping device is placed inside the machine for easy operation. Heating zones are controlled by enclosed temperature control, with automatic zone temperature regulation to prevent foil sticking when the machine stops.
Longitudinal Foil Feeding Shaft
Longitudinal lower foil feeding shaft is placed outside the machine, making foil change operations quicker and more convenient.
Foil Collection Shaft
Equipped with anti-wrinkle device and wave-absorbing device to keep foils flat and smooth.
Japan Servo Motor Drive System
Uses Japanese Yaskawa servo motors and German original Voith control system, with famous-brand Japanese hitech and ANHON drivers. Fully automatic invisible/reflection-free foil skipping, positioning accuracy up to 0.011 mm.
Remote Assist Control System
Once connected to the network, engineers can perform remote-assist control to solve after-sales problems quickly.
Fast Foil / Die Plate Changeover
Foil and die plate changeover without stopping the machine — greatly improving productivity.
Reinforced Frame
Reinforced wallboard strength up to 1200T. The embossing unit has upper and lower limit switches, ensuring safe and accurate positioning on high and low positions.
20-Zone Temperature Control System
Independent temperature control for each of the 20 temperature zones with automatic PID precision heating, ensuring stable and even temperature control and fast response — enabling more complex electrified aluminum foil effects.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
