Fully Automatic Flatbed Die Cutting Machine
Three formats: 1300 / 1500 / 1700 · Two feeding options: lead-edge feeder for high-speed running · bottom suction feeder for thin or coated board
The YC-1300/1500/1700AL fully automatic flatbed die cutting machine series covers three sheet formats with two feeding options on the same platform: a lead-edge feeder for high-speed production of standard carton board, and a bottom suction feeder that handles thin, lightweight or coated boards with superior stability. High-precision intermittent mechanism, pneumatic plate locking, overload protection and microcomputer control with HMI are standard across the series.
Request a Quote WhatsApp UsKey Features
- Three formats: YC-1300AL / YC-1500AL / YC-1700AL
- Two feeding options: lead-edge feeder (high speed) or bottom suction feeder (thin / coated board)
- High-precision intermittent die cutting mechanism
- Pneumatic plate locking and clutch, overload protection with multiple sensors
- Microcomputer control with HMI touch screen
- Front-margin-free option available for special applications
YC-1300AL in Operation
00:48
The YC-1300AL on our factory floor handling corrugated board up to 8 mm: the lead-edge feeder draws the sheet off a tall stack, feeds it through the die cutting station, and the finished board is delivered stacked. A 1300×950 mm sheet format with 350 T die cutting pressure — the entry format of the AL series, matched to carton plants that need automatic die cutting without the footprint of a 1700 machine.
YC-1300AL — Die Cutting Station Close-Up
00:40
A closer look at the same YC-1300AL: the control panel reads 4,316 sheets/hour in production, then the camera moves to the die cutting station and stripping area where corrugated sheets are fed through continuously. The shot ends on the YUANCHENG 1300X machine frame — the build platform used for the AL series — showing the orange-and-white guarding, gripper bars and the delivery end.
Get the Best Price on the YC-1300/1500/1700AL
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1300AL | YC-1500AL | YC-1700AL |
|---|---|---|---|
| Max. Sheet Size | 1320×980 mm (1300×950 mm) | 1500×1200 mm (1500×1100 mm) | 1700×1200 mm |
| Min. Sheet Size | 550×400 mm | 550×420 mm | 600×450 mm |
| Max. Die Cutting Size | 1300×960 mm (1280×940 mm) | 1490×1180 mm (1480×1080 mm) | 1680×1180 mm |
| Max. Die Cutting Pressure | 350 T | 400 T | 450 T |
| Processable Paperboard | Corrugated board ≤ 8 mm (max. thickness) | ||
| Die Cutting Accuracy | ± 0.5 mm | ||
| Machine Speed | ≥ 5500 sheets/h | ≥ 5000 sheets/h | ≥ 4500 sheets/h |
| Total Power | 25 kW | 32 kW | 35 kW |
| Machine Weight | 21 T | 26 T | 28 T |
| Overall Dimensions | 10,900×4700×2900 mm | 11,000×5100×2930 mm | 11,000×5300×2930 mm |
* Dimensions in brackets are optional configurations. YC-1300AL standard: non-pre-stacking, non-stop feeding. Specifications subject to change without prior notice.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
Related Machines
Suction Feed Fully Automatic Flatbed Die Cutting Machine
Suction (bottom-blow) feed version for stable feeding of a wide range of paperboard.
View Details →
Fully Automatic Full-Stripping Corrugated Die Cutting Machine
Full waste stripping for corrugated board. Large format 1700mm class.
View Details →

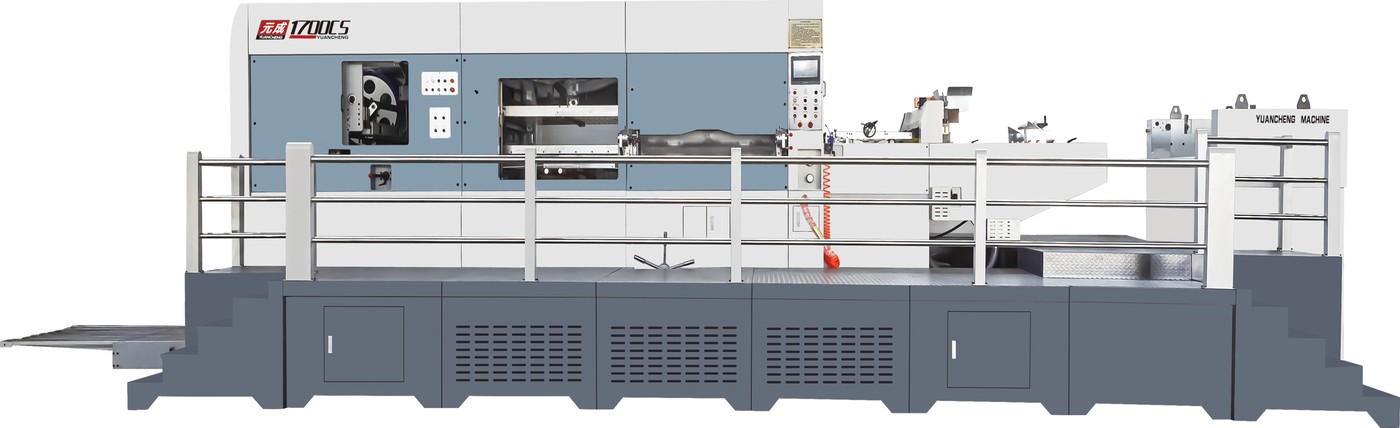

Lead-Edge Feed / Suction Feed Die Cutting Machine
