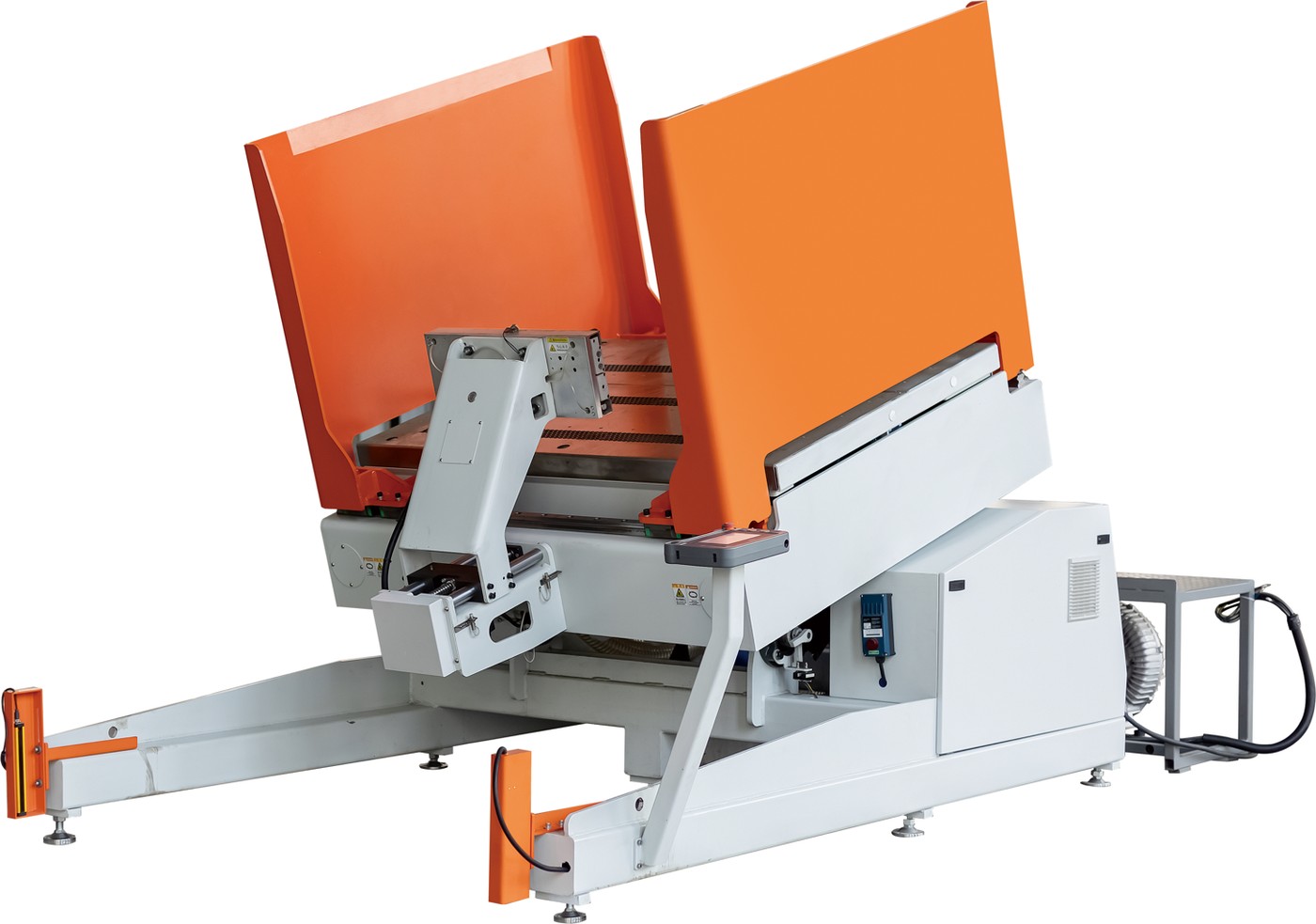

Fully Automatic Paper Turning & Stacking Machine
The YC-1300/1450/1700 fully automatic paper turning machine automatically turns and stacks sheets so that the printed dry side faces the required direction — a practical automation add-on for offset printing and post-press lines.
Request a Quote WhatsApp UsKey Features
- Three formats: 1300 / 1450 / 1700
- Automatic turning and neat stacking
- Dry-side rotation for printing lines
- Reduces manual handling
- Smooth integration into existing lines
Machine in Operation
00:34
A full pallet of board is clamped, lifted clear of the pallet and turned 180° on the turning head, then lowered onto a fresh pallet — the dry side now faces the other way. Repeat positioning accuracy is quoted at 0.08°, which is what keeps the stack square enough to feed the next press. Ask us on WhatsApp for a live video call or a clip of your sheet size.
Get the Best Price on the YC-1300/1450/1700
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1300 | YC-1450 | YC-1700 |
|---|---|---|---|
| Max. Sheet Size | 1270×870 mm | 1450×1100 mm | 1670×1250 mm |
| Max. Pallet Size | 1300×900 mm | 1500×1200 mm | 1700×1300 mm |
| Min. Sheet Size | 500×400 mm | 600×400 mm | 800×600 mm |
| Max. Pile Height | 1500 mm (incl. pallet) | 1600 mm (incl. pallet) | 1600 mm (incl. pallet) |
| Min. Pile Height | 700 mm (incl. pallet) | 750 mm (incl. pallet) | 750 mm (incl. pallet) |
| Blower Heads | 3 pcs | 3 pcs | 3 pcs |
| Air Flow | 1530 m³/h | 2800 m³/h | 2968 m³/h |
| Air Pressure | 43 kPa | 50 kPa | 60 kPa |
| Turning Method | 180° turning, repeat positioning accuracy 0.08° | ||
| Noise Level | 65–70 dB | 70–80 dB | 70–80 dB |
| Max. Load | 2866 lb / 1300 kg | 3410 lb / 1550 kg | 4410 lb / 2000 kg |
| Total Power | 12 kW | 18 kW | 30 kW |
| Power Supply | AC 380V 50Hz three-phase five-wire (customizable) | ||
| Total Weight | 6610 lb / 3000 kg | 10580 lb / 4800 kg | 12120 lb / 5500 kg |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
