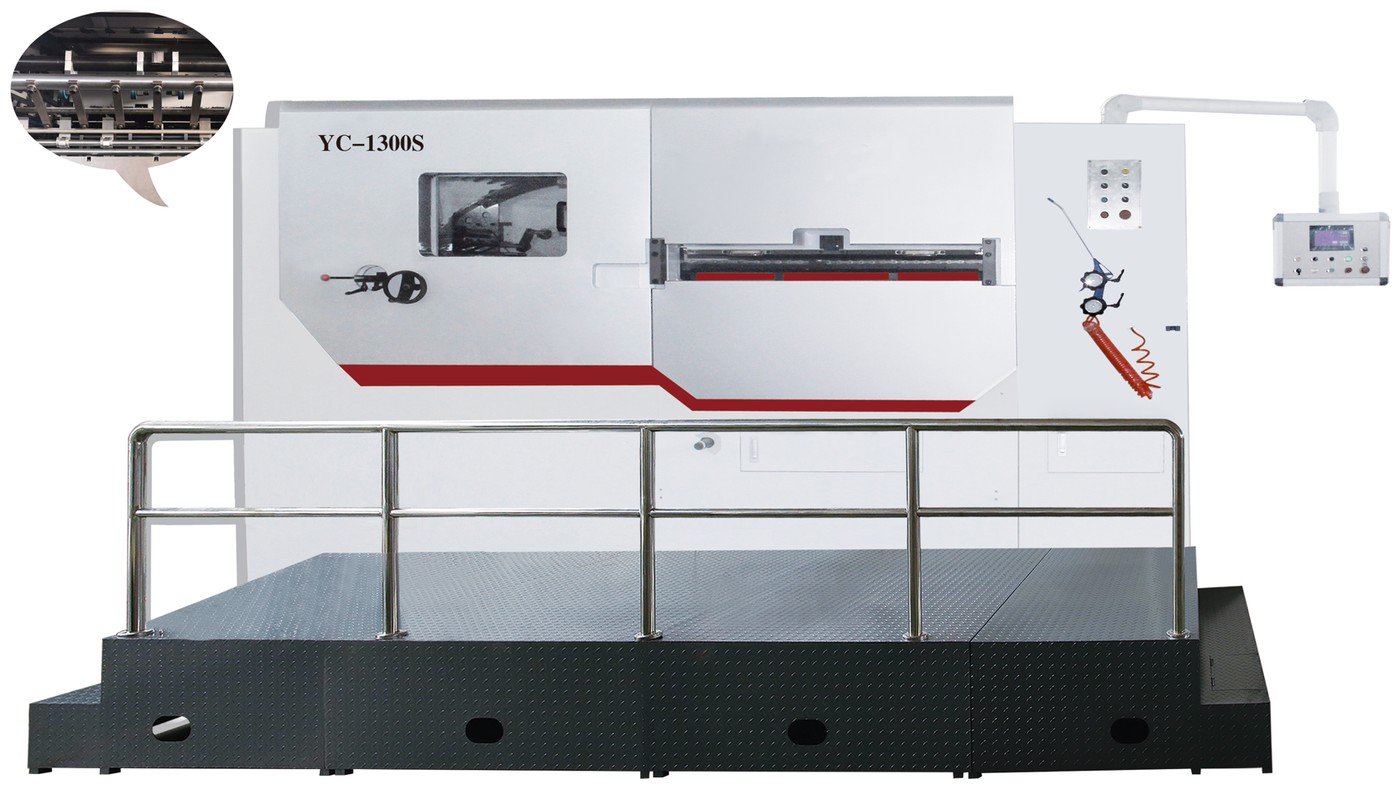

Semi-Automatic Die Cutting & Creasing Machine (Optional Stripping)
The YC-S series semi-automatic die cutting and creasing machines (1300/1500/1700) offer an economical entry into quality die cutting, with an optional waste stripping unit. Ideal for short-to-medium runs and growing plants.
Request a Quote WhatsApp UsKey Features
- Three formats: 1300 / 1500 / 1700
- Optional waste stripping unit
- Economical and easy to operate
- Stable creasing quality
- Low investment, fast ROI
Machine in Operation
00:22
The YC-1300S die cutting corrugated board: the operator feeds sheets by hand while the machine runs the die cutting cycle automatically. Same MY-1300 build we ship as YC-S Series in 1300 / 1500 / 1700 sizes — ask us which size fits your sheet, or for a live video call via WhatsApp.
Get the Best Price on the YC-S Series 1300/1500/1700
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1300S | YC-1500S | YC-1700S |
|---|---|---|---|
| Max. Sheet Size | 1320×980 mm (1300×920 mm) | 1500×1200 mm (1500×1100 mm) | 1700×1200 mm |
| Min. Sheet Size | 550×450 mm | 550×500 mm | 650×600 mm |
| Max. Die Cutting Size | 1300×970 mm (1280×900 mm) | 1490×1180 mm (1480×1080 mm) | 1680×1180 mm |
| Max. Die Cutting Pressure | 350 T | 400 T | 450 T |
| Processable Paperboard | Corrugated board ≤ 8 mm (max. thickness) | Corrugated board ≤ 8 mm (max. thickness) | Corrugated board ≤ 8 mm (max. thickness) |
| Die Cutting Accuracy | ± 5 mm | ||
| Machine Speed | ≥ 4500 sheets/h | ≥ 4500 sheets/h | ≥ 4000 sheets/h |
| Total Power | 13.5 kW | 13.5 kW | 15.75 kW |
| Machine Weight | approx. 14 T | 17 T | 17.8 T |
| Overall Dimensions | 5840×4400×2630 mm (incl. waste stripper) | 6000×4600×2250 mm (incl. waste stripper) | 6500×5200×2560 mm (incl. waste stripper, excl. pre-stacker) |
* Dimensions in brackets are optional configurations. Waste stripping optional. Specifications subject to change without prior notice.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
