Fully Automatic Waste Stripping Corrugated Die Cutting Machine
Two feeding options on one platform: lead-edge feeder for high-speed running · bottom suction feeder for warped or thin board
The YC-1500CS fully automatic waste stripping corrugated die cutting machine handles 1.5–8 mm corrugated board with two feeding options on the same platform — a lead-edge feeder for high-speed production, or a bottom suction feeder for warped and thin board. The stripping unit removes edge waste and inner scrap automatically, and non-stop delivery keeps finished stacks neat throughout the run.
Request a Quote WhatsApp UsKey Features
- Two feeding options: lead-edge feeder (high speed) or bottom suction feeder (warped / thin board)
- Automatic waste stripping — edge waste and inner scrap removed in one pass
- Non-stop delivery: blanking continues while the machine runs
- Precise stripping dies with quick-change frames
- Pneumatic plate lock-up and overload protection
Machine in Operation
00:47
Large-format corrugated board moving through the CS platform with the full waste-stripping unit engaged — the lead-edge feeder draws the top sheet off the stack, die cutting runs at 5,089 sheets/hour on the control panel, and the stripping section clears the waste window and edge trim before stacking. Sheets come off ready for fold-glue, with no manual waste breaking.
Get the Best Price on the YC-1500CS
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1500CS |
|---|---|
| Feeding Options | Lead-edge feeder / bottom suction feeder |
| Max. Sheet Size | 1500×1200 mm |
| Min. Sheet Size | 550×420 mm |
| Max. Die Cutting Size | 1490×1180 mm |
| Max. Working Pressure | 400 T |
| Paperboard Thickness | Board 1.5–8 mm |
| Gripper Margin | 9–17 mm |
| Machine Speed | ≥ 5000 sheets/h |
| Total Power | 18 kW |
| Air Pressure / Flow | 0.55–0.7 MPa / > 0.6 m³/min |
| Machine Weight | 31.8 T |
| Overall Dimensions | 11,000×5100×2930 mm |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
Related Machines
Lead-Edge Feed Fully Automatic Flatbed Die Cutting Machine
Lead-edge feeder for high-speed precision die cutting of color boxes. No-gripper-margin option.
View Details →

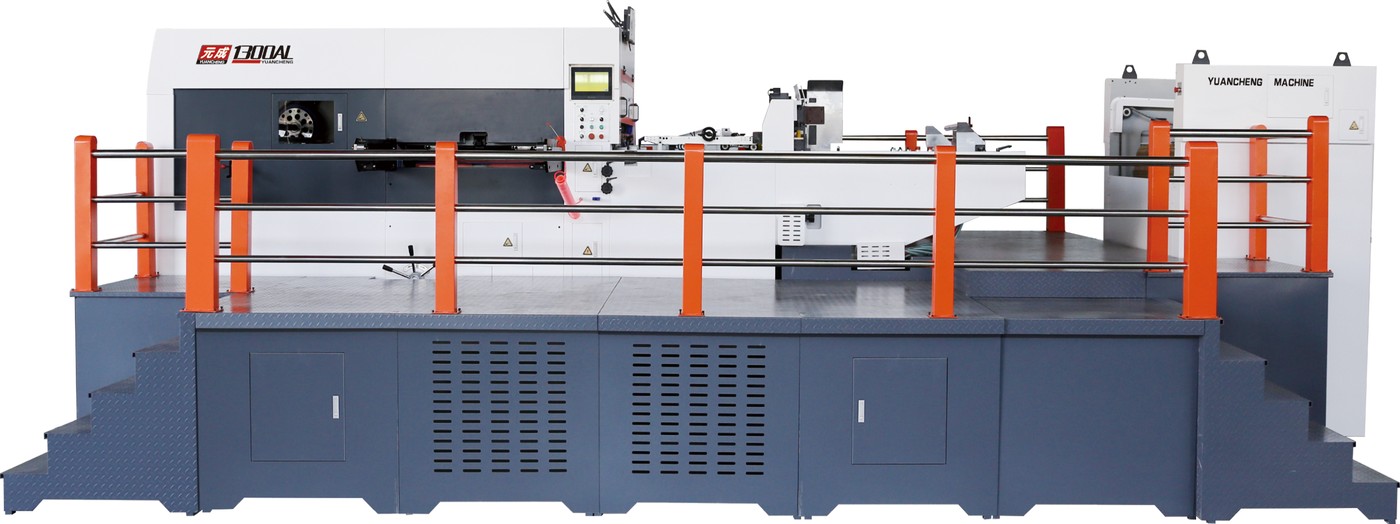

Suction Feed Fully Automatic Flatbed Die Cutting Machine
Suction (bottom-blow) feed version for stable feeding of a wide range of paperboard.
View Details →

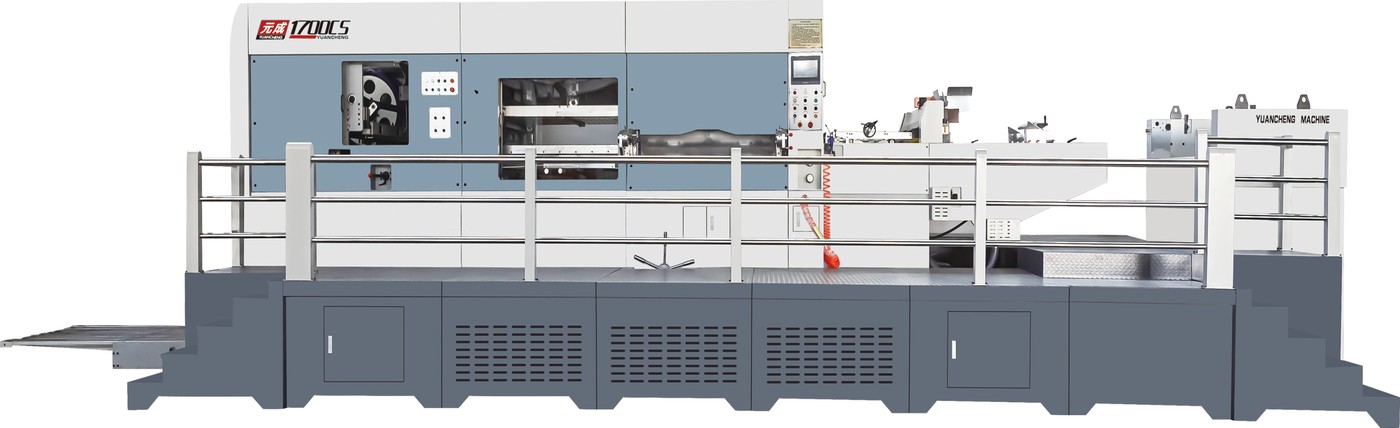

Fully Automatic Full-Stripping Corrugated Die Cutting Machine
