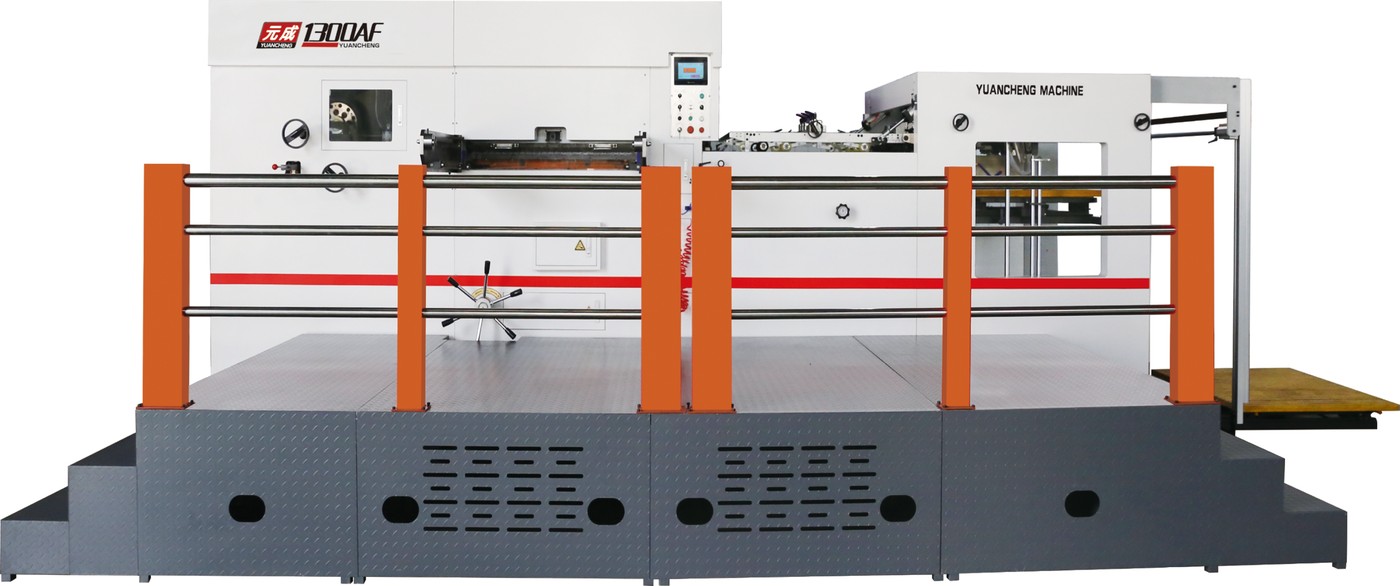

Fully Automatic Card & Corrugated Integrated Die Cutting Machine
Three formats: 1300AF / 1500AF / 1700AF · one platform covering card board and corrugated board
The YC-1300/1500/1700AF series is a range of integrated die cutting machines that handle both card board and corrugated board on one platform. Available in three sheet formats — 1300×950 mm, 1500×1200 mm and 1700×1200 mm — a single machine covers two material families, giving converters the flexibility to take mixed orders without duplicate investment.
Request a Quote WhatsApp UsKey Features
- Three formats: YC-1300AF / YC-1500AF / YC-1700AF
- Cardboard and corrugated in one machine
- Flexible changeover for mixed orders
- Automatic feeding and delivery
- Overload protection and safety sensors
- Microcomputer control with HMI
Machine in Operation
00:34
00:39
Two views of the AF platform. Left: the machine running at production speed, from blank feeding through the cutting unit to the delivery pile. Right: inner-hole waste stripping on corrugated board — even slightly warped board feeds and cuts without trouble. Ask us on WhatsApp for a live video call or samples.
Get the Best Price on the YC-1300/1500/1700AF
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1300AF | YC-1500AF | YC-1700AF |
|---|---|---|---|
| Max. Sheet Size | 1320×950 mm | 1500×1200 mm (1500×1100 mm) | 1700×1200 mm |
| Min. Sheet Size | 400×390 mm | 550×500 mm | 650×600 mm |
| Max. Die Cutting Size | 1300×940 mm | 1490×1180 mm (1480×1080 mm) | 1680×1180 mm |
| Max. Die Cutting Pressure | 350 T | 400 T | 450 T |
| Processable Paperboard | Card board 200–2000 g/m²; corrugated board ≤ 8 mm (max. thickness) | Corrugated board ≤ 8 mm (max. thickness) | Corrugated board ≤ 8 mm (max. thickness) |
| Die Cutting Accuracy | ± 0.15 mm | ± 0.5 mm | ± 0.5 mm |
| Max. Machine Speed | 6000 sheets/h | ≥ 4500 sheets/h | ≥ 4000 sheets/h |
| Total Power | 13.5 kW | 13.5 kW | 15.75 kW |
| Machine Weight | 16 T | 17 T | 17.8 T |
| Overall Dimensions | 6600×4500×2300 mm | 6000×4600×2250 mm (incl. footboard) | 6500×5200×2560 mm (incl. footboard, excl. pre-stacking) |
* Dimensions in brackets are optional configurations. YC-1500AF / YC-1700AF parameters correspond to the 1500S / 1700S platform builds. Specifications subject to change without prior notice — contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
