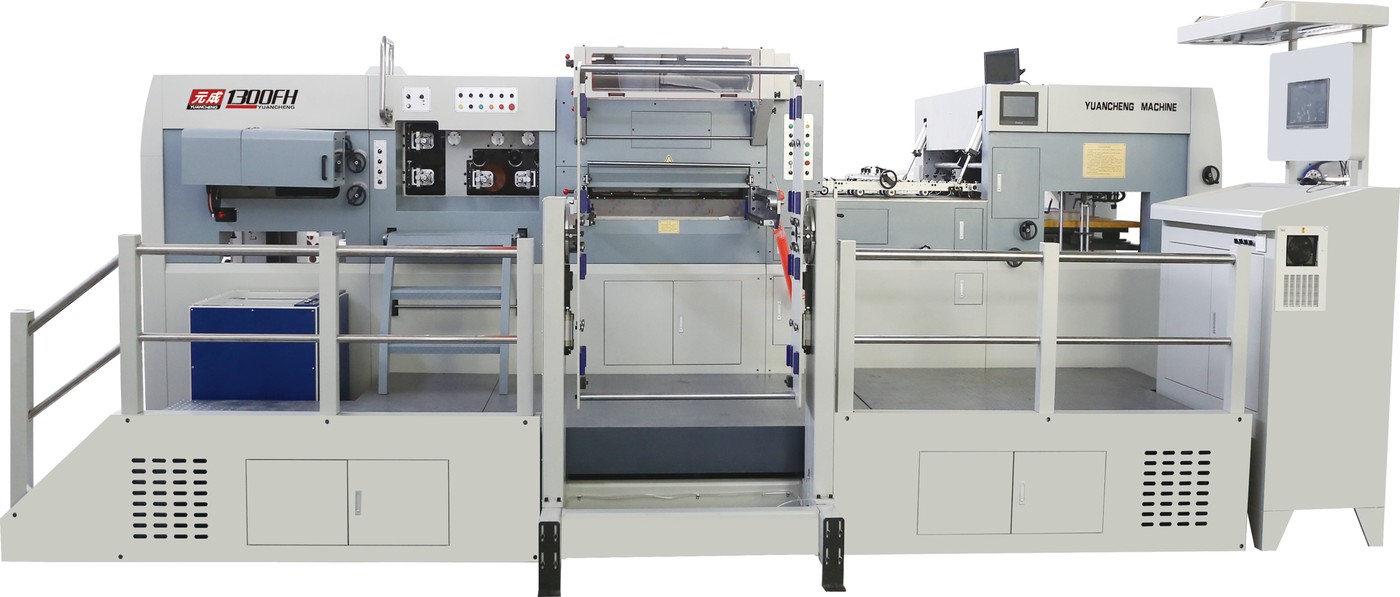

Fully Automatic Flatbed Foil Stamping & Die Cutting Machine
The YC-1300FH / YC-1300FED is the large-format foil stamping platform: 1300×970 mm die cutting area, 1000 T working pressure and 20 independent temperature zones. The FH model covers foil stamping and die cutting for large cartons, gift boxes and display packaging; the FED model adds deep press for textured and embossed effects. The anodized aluminum foil servo system uses 3 longitudinal and 2 lateral shafts.
Request a Quote WhatsApp UsKey Features
- Two variants: YC-1300FH (foil stamping + die cutting) and YC-1300FED (deep press + foil stamping)
- 1300×970 mm die cutting area, 1000 T working pressure
- 20 independent temperature control zones
- 3 longitudinal + 2 lateral anodized foil shafts, servo driven
- 6000 sheets/h working speed
- Corrugated board up to 7 mm
Machine in Operation
00:38
Finished cartons foil stamped and deep embossed on the YC-1300FED, filmed at actual production speed — crisp foil edges and consistent registration sheet after sheet.
YC-1300FH — Machine Walk-Through
00:44
A full walk-through of the YC-1300FH running at 5,043 sheets/hour: bottom suction feeder, register, foil stamping unit, deep embossing unit, control panel and delivery.
Get the Best Price on the YC-1300FH / YC-1300FED
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1300FH / YC-1300FED |
|---|---|
| Max. Feeding Size | 1320×1060 mm |
| Min. Feeding Size | 400×390 mm |
| Max. Die Cutting Size | 1300×970 mm |
| Max. Stamping Size | 1300×960 mm |
| Paper Specification | 100–2000 g/m² |
| Corrugated Paper Thickness | ≤ 7 mm |
| Ordinary Hot Stamping Speed | 5000 sheets/h |
| Ordinary Hot Stamping Accuracy | ≤ ± 0.075 mm |
| Foil Feeding System | Anodized aluminum foil servo, 3 longitudinal + 2 lateral shafts |
| Max. Anodized Foil Diameter | Longitudinal 3 shafts ø200 mm; lateral 2 shafts ø250 mm |
| Temperature Control Area | 20 independent zones |
| Max. Working Speed | 6000 sheets/h |
| Front Margin | 4–12 mm |
| Max. Working Pressure | 1000 T |
| Total Power | 53.95 kW |
| Total Weight | 28 T |
| Overall Dimension | 9005×4608×2727 mm |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
