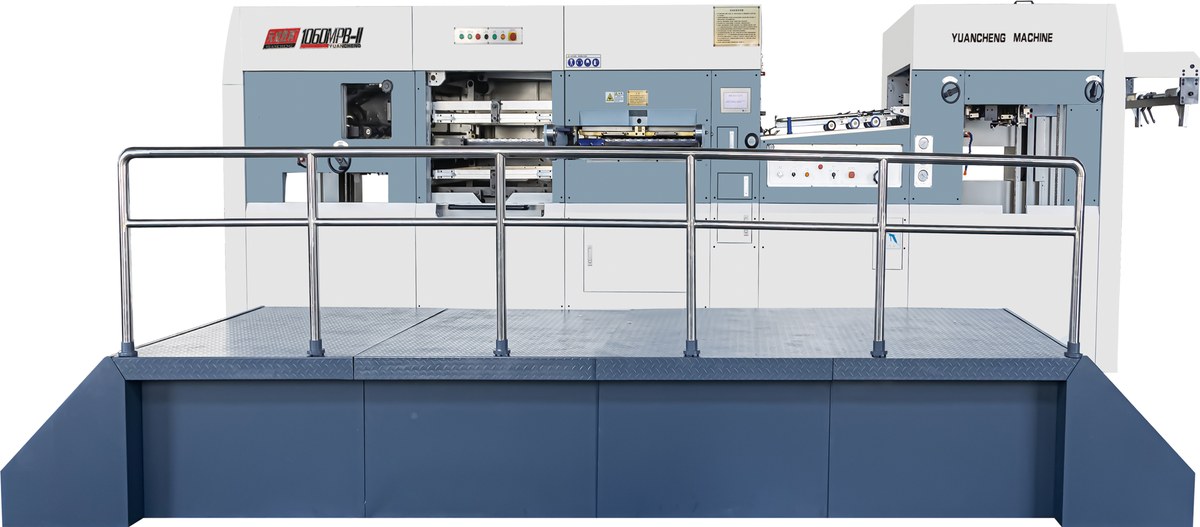

Fully Automatic Flatbed Die Cutting Machine with Stripping
The YC-1060MPB-II is a fully automatic flatbed die cutting machine with integrated stripping for cardboard packaging. Upper, middle and lower stripping frames are controlled independently by 3.0 kW servo motors, so edge waste, inner holes and scrap are removed in one pass. With 300 T die cutting pressure and 7500 sheets/h, it replaces a die cutter plus a separate stripping station for folding cartons, food and cosmetics boxes.
Request a Quote WhatsApp UsKey Features
- Upper, middle and lower stripping frames independently driven by 3.0 kW servo motors
- Feeding and stripping stations share one servo control system — fewer settings, shorter changeover
- Automatic edge waste, inner hole and scrap removal in one pass
- 300 T die cutting pressure, up to 7500 sheets/h
- Suitable for 100–2000 g/m² cardboard and corrugated board up to 4 mm
Machine in Operation
00:34
The YC-1060MPB-II running at 7,200 sheets/hour: control panel, sheet feeding section, die cutting unit, waste stripping and delivery on the factory floor. Ask us on WhatsApp for a live video call or a sample run on your own board.
Get the Best Price on the YC-1060MPB-II
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1060MPB-II |
|---|---|
| Max. Sheet Size | 1060×760 mm |
| Min. Sheet Size | 400×350 mm |
| Max. Die Cutting Size | 1050×750 mm |
| Min. Front Margin | 5 mm |
| Die Cutting Precision | ± 0.1 mm |
| Max. Die Cutting Pressure | 300 T |
| Cardboard Specification | 100–2000 g/m² |
| Corrugated Paper | ≤ 4 mm |
| Max. Die Cutting Speed | 7500 sheets/h |
| Max. Speed with Stripping | 6000 sheets/h |
| Max. Height of Feeding Pile | 1000 mm |
| Max. Height of Delivery Pile | 1090 mm |
| Total Power | 21.9 kW |
| Total Weight | 18 T |
| Overall Dimension | 7460×4080×2530 mm |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
