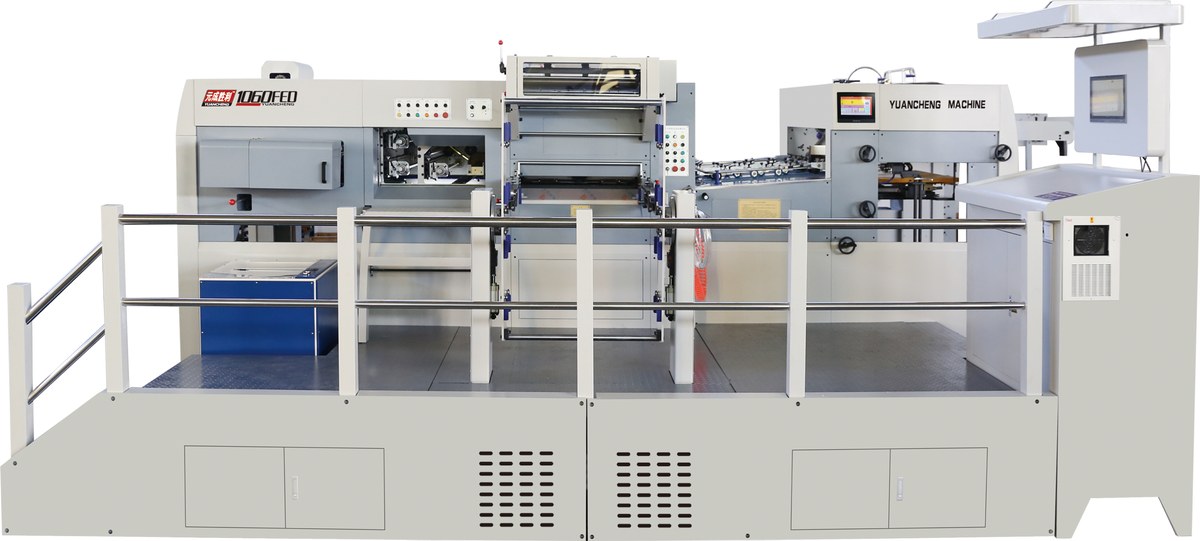

Fully Automatic Flatbed Foil Stamping & Die Cutting Machine
The YC-1060FH / YC-1060FED series brings hot foil stamping and die cutting onto one 1060 platform. The FH model handles flat foil stamping, holographic foil and die cutting for cartons and labels; the FED model adds deep press capability for luxury packaging with embossed foil effects. Both use 900 T working pressure, 16 independently controlled heating zones and a longitudinal 3-shaft / lateral 2-shaft anodized aluminum foil feeding system.
Request a Quote WhatsApp UsKey Features
- Two variants: YC-1060FH (foil stamping + die cutting) and YC-1060FED (deep press + foil stamping)
- 900 T max working pressure, 1060×840 mm max sheet
- 16 independent heating zones with PID control
- Longitudinal 3 shafts + lateral 2 shafts anodized aluminum foil servo system
- Holographic foil capability, 5500 sheets/h
- Ordinary stamping precision ≤ ± 0.075 mm; holographic ≤ ± 0.15 mm
Machine in Operation
00:43
Six separate aluminium foil rolls (top and bottom) stamping in sync on the YC-1060FED: each foil path is driven by its own servo, with foil feed and rewind running together with the machine cycle — less foil waste and consistent stamping quality on multi-colour jobs.
00:54
A full walk-through of the YC-1060FH on the factory floor: sheet feeder, foil stamping unit, and the finished gold-stamped beer carton coming off the delivery — registration held tight across the run, with foil feed and rewind synchronised to the machine cycle.
Get the Best Price on the YC-1060FH / YC-1060FED
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1060FH / YC-1060FED |
|---|---|
| Max. Sheet Size | 1060×840 mm |
| Min. Sheet Size | 400×280 mm |
| Max. Die Cutting Size | 1050×750 mm |
| Max. Stamping Size | 1050×745 mm |
| Cardboard Specification | 100–2000 g/m² |
| Corrugated Board | ≤ 4 mm |
| Stamping Speed | 6500 sheets/h |
| Max. Speed | 7500 sheets/h |
| Holographic Stamping Speed | 5500 sheets/h |
| Ordinary Stamping Precision | ≤ ± 0.075 mm |
| Holographic Stamping Precision | ≤ ± 0.15 mm |
| Foil Feeding Unit | Longitudinal 3 shafts / lateral 2 shafts |
| Max. Length of Foil Conveying | Longitudinal 180 mm / lateral 200 mm |
| Heating Zone | 16 independent heating areas |
| Front Margin | 4–12 mm |
| Max. Working Pressure | 900 T |
| Total Power | 53.95 kW |
| Total Weight | 18 T (FH) / 21 T (FED) |
| Overall Dimension | 7650×4560×2730 mm (incl. platform) |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
