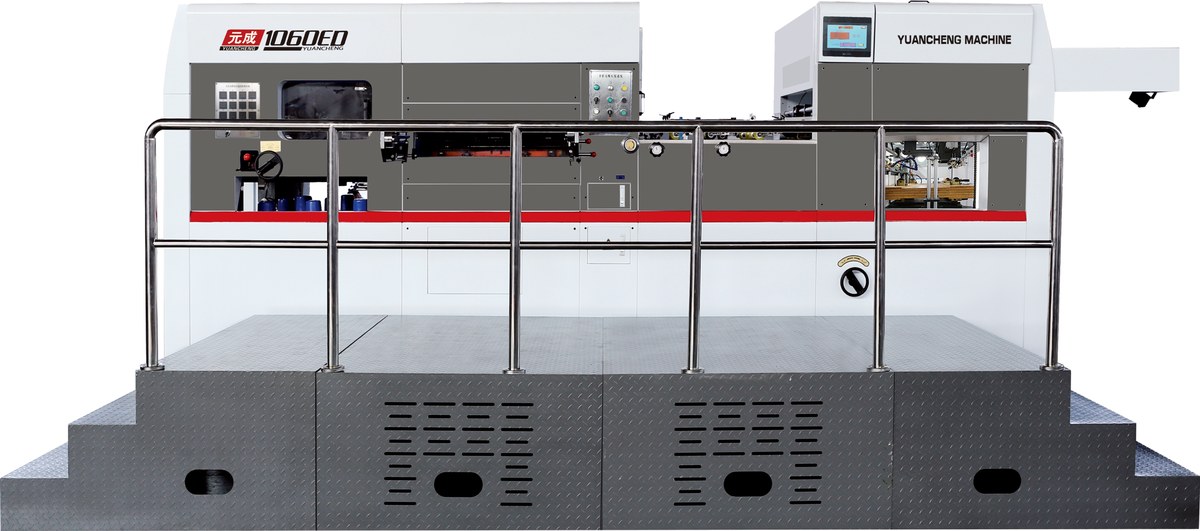

Fully Automatic Deep Press Die Cutting Machine
The YC-1060ED is a fully automatic deep press die cutting machine built for luxury packaging, greeting cards and premium cartons. A 900 T working pressure and 800 T design pressure allow embossing depths up to 1.2 mm in one pass, with 12 independently controlled heating zones keeping the die at a stable temperature. The stripping unit and 7500 sheets/h production speed make it a complete deep-embossing line rather than a secondary operation.
Request a Quote WhatsApp UsKey Features
- 900 T working pressure (800 T design pressure) for deep embossing up to 1.2 mm
- 12 independently controlled heating zones with PID temperature control
- Deep press die cutting and stripping in one pass
- 7500 sheets/h production speed
- Die cutting precision ± 0.1 mm
- Handles 100–2000 g/m² cardboard
Machine in Operation
00:34
00:13
The YC-1060ED die cutting grey board under high pressure, with the control panel reading 5,043 sheets/hour during production. Thick, dense board needs real tonnage — the ED press delivers it without sacrificing speed, so grey board and laminated stock are cut cleanly instead of crushed.
For deep embossing, the same press carries an embossing depth of up to 1.2 mm — deep enough for the sculpted, three-dimensional relief used on premium toy, electronics and gift packaging. The board leaves the press with the relief fully formed and no spring-back, so the raised detail survives folding, gluing and carton forming.
Get the Best Price on the YC-1060ED
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1060ED |
|---|---|
| Max. Paper Size | 1060×760 mm |
| Min. Paper Size | 400×370 mm |
| Max. Cutting Size | 1045×750 mm |
| Max. Cutting Speed | 7500 sheets/h |
| Sheet Thickness | Cardboard: 100–2000 g/m² |
| Max. Hot Pressing Size | 1040×750 mm |
| Design Pressure | 800 T |
| Max. Pressure | 900 T |
| Die Precision | ± 0.1 mm |
| Embossing Depth | ≤ 1.2 mm |
| Temperature Zones | 12 independent heating zones |
| Total Power | 52 kW |
| Net Weight | 19.5 T |
| Overall Dimension | 6530×4500×2350 mm (incl. platform) |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
