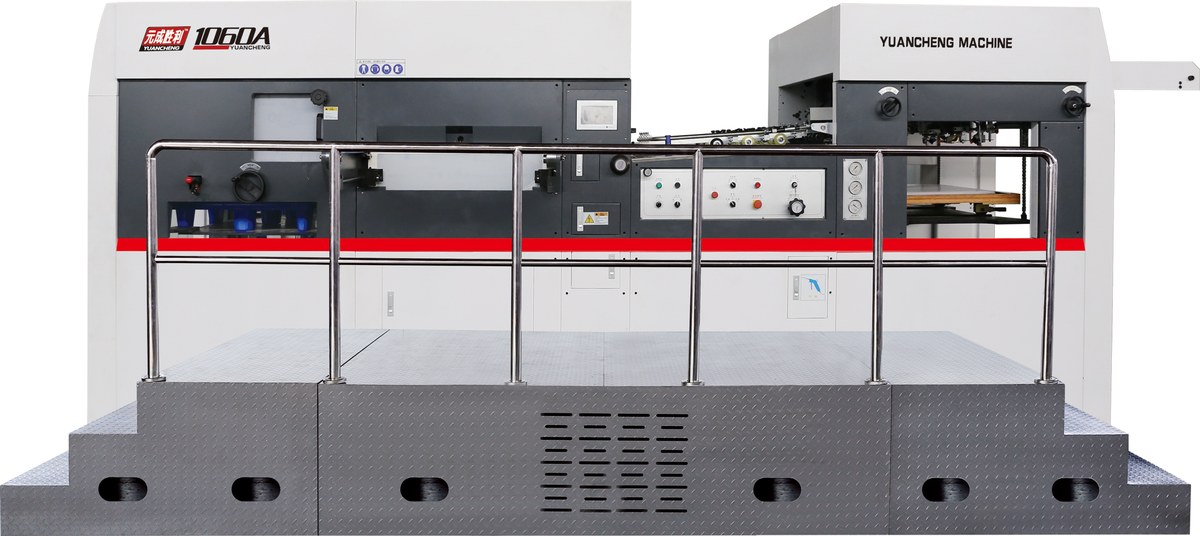

Fully Automatic Flatbed Die Cutting & Creasing Machine
The YC-1060A / YC-1060C are fully automatic flatbed die cutting and creasing machines for folding cartons, paper boxes and labels. Both handle 100–2000 g/m² cardboard and corrugated board up to 4 mm with ± 0.1 mm precision at 350 T. The C version runs up to 8000 sheets/h. Main drive uses automatic lubrication and cooling; the chain has a pre-extended guide with automatic lubrication for long-run stability, and an overload protection device with torque limiter protects both operator and machine.
Request a Quote WhatsApp UsKey Features
- 1060A / 1060C platform: 1060×780 mm max sheet, 350 T pressure
- Speed up to 7500 sheets/h (A) / 8000 sheets/h (C)
- Die cutting precision ± 0.1 mm
- Automatic lubrication and cooling for the main drive; pre-extended chain guide
- Overload protection with torque limiter; hardened worm shaft and copper worm gear
- Imported pneumatic clutch and SMC pneumatic parts
Machine in Operation
00:38
The YC-1060A/C running at 6,383 sheets/hour: feeder, register, die cutting/creasing unit and delivery, followed by the stacked cartons it produces. Ask us on WhatsApp for a live video call or samples.
Get the Best Price on the YC-1060A / C
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1060A / C |
|---|---|
| Model Options | YC-1060A (7500 sheets/h) / YC-1060C (8000 sheets/h) |
| Max. Sheet Size | 1060×780 mm |
| Min. Sheet Size | 400×350 mm |
| Max. Die Cutting Size | 1050×750 mm |
| Min. Front Margin | 5 mm |
| Die Cutting Precision | ± 0.1 mm |
| Max. Die Cutting Pressure | 350 T |
| Cardboard Specification | 100–2000 g/m² |
| Corrugated Paper | ≤ 4 mm |
| Max. Height of Feeding Pile | 1380 mm |
| Max. Height of Delivery Pile | 1100 mm |
| Max. Die Cutting Speed | 7500 / 8000 sheets/h |
| Total Power | 16 / 18 kW |
| Total Weight | 16.6 T / 17 T |
| Overall Dimension | 6370×3780×2060 mm |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
