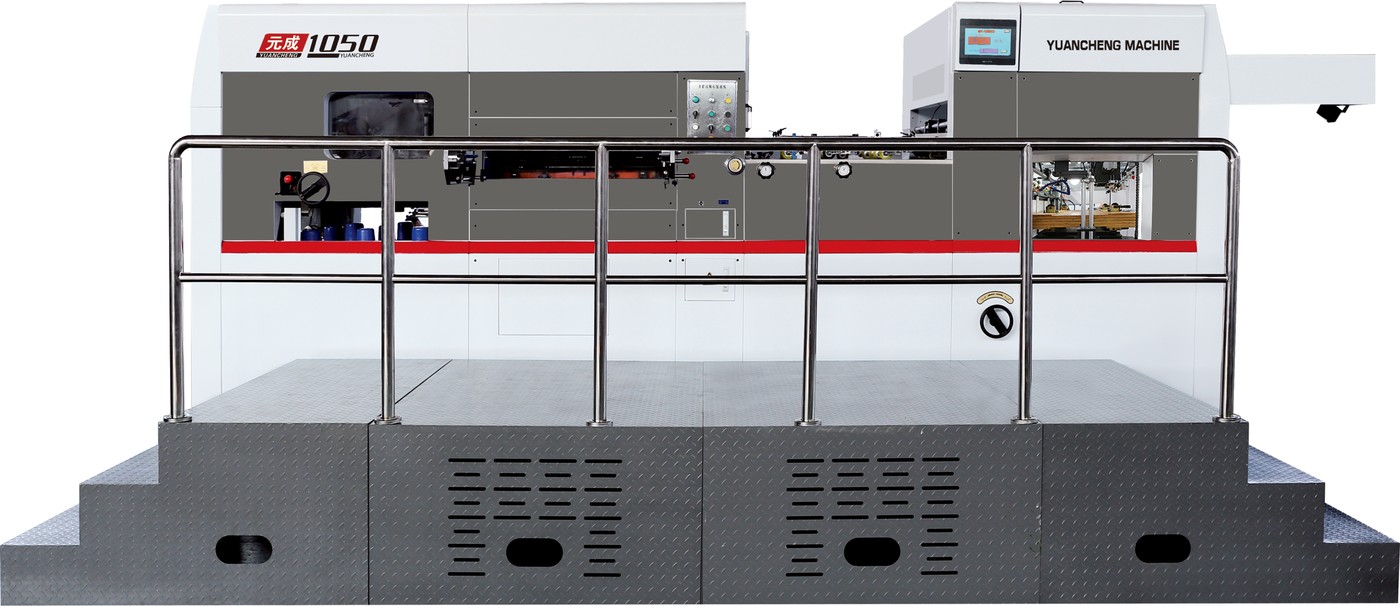

Fully Automatic Flatbed Die Cutting & Creasing Machine
The YC-1050 / YC-1080 are fully automatic flatbed die cutting and creasing machines for folding cartons and paper boxes. Feeding, die cutting and delivery are automated end to end, with a more digitalised gripper bar chain for smoother running and consistent cutting accuracy. Both models share the 350 T press and 7500 sheets/h speed, differing in maximum sheet size: 1050×750 mm and 1080×780 mm.
Request a Quote WhatsApp UsKey Features
- Two formats: YC-1050 (1050×750 mm) and YC-1080 (1080×780 mm)
- 350 T max pressure, 7500 sheets/h
- Fully automatic feeding, die cutting and delivery
- Digitalised gripper bar chain for smoother, more stable running
- Die cutting precision ± 0.1 mm
- Handles cardboard 100–2000 g/m² and corrugated board up to 4 mm
Machine in Operation
00:36
The same YC-1050 die cutting plastic sheets: feeder, register, die cutting and delivery on the same flatbed platform. One machine, two very different materials — tell us your material and thickness and we will advise the right configuration.
Die Cutting Corrugated Board
00:45
The YC-1050 die cutting corrugated board up to 4 mm: sheets lifted from the feeder stack, registered, die cut and delivered — thick board cut cleanly at full production speed.
YC-1080 — 128 gsm Thin Paper at 5,600 Sheets/h
00:31
Thin paper is where most die cutters lose speed: the sheet lifts, curls and misfeeds. Here the YC-1080 runs 128 gsm stock with the control panel reading 5,600 sheets/h — feeder, front register, die cutting and creasing, then sheet delivery, all stable. If your work is light board, paperboard or thin printed sheets, this is the configuration to ask about.
YC-1080 — Die Cutting at 6,520 Sheets/h
00:20
The YC-1080 on the factory floor, with the control panel reading 6,520 sheets/h during actual production: feeder, front register, die cutting and creasing, then delivery. Same platform as the YC-1050 with a larger format — ask us which size fits your sheet.
Get the Best Price on the YC-1050 / YC-1080
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | YC-1050 / YC-1080 |
|---|---|
| Model Options | YC-1050 / YC-1080 |
| Max. Paper Size | 1050×750 mm (YC-1050) / 1080×780 mm (YC-1080) |
| Min. Paper Size | 400×350 mm |
| Max. Cutting Size | 1040×740 mm |
| Max. Cutting Speed | 7500 sheets/h |
| Sheet Thickness | Cardboard 100–2000 g/m²; corrugated ≤ 4 mm |
| Die Precision | ± 0.1 mm |
| Max. Pressure | 350 T |
| Total Power | 17 kW |
| Net Weight | 15 T |
| Overall Dimension | 6530×4200×2350 mm (incl. platform) |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
CE certified — this model is listed on certificate M.2022.206.C78240 (Machinery Directive 2006/42/EC, UDEM), valid until 13.10.2027.
Why Buy From Yuancheng
Factory Direct
25,000㎡ plant in Hebei, China. No middleman markup — direct factory price and technical support.
Export Experience
Machines running in Europe, Africa, the Americas and Southeast Asia. English documentation included.
After-Sales Support
Remote video commissioning, spare parts supply and lifetime technical assistance.
