Automatic Window Patching Machine

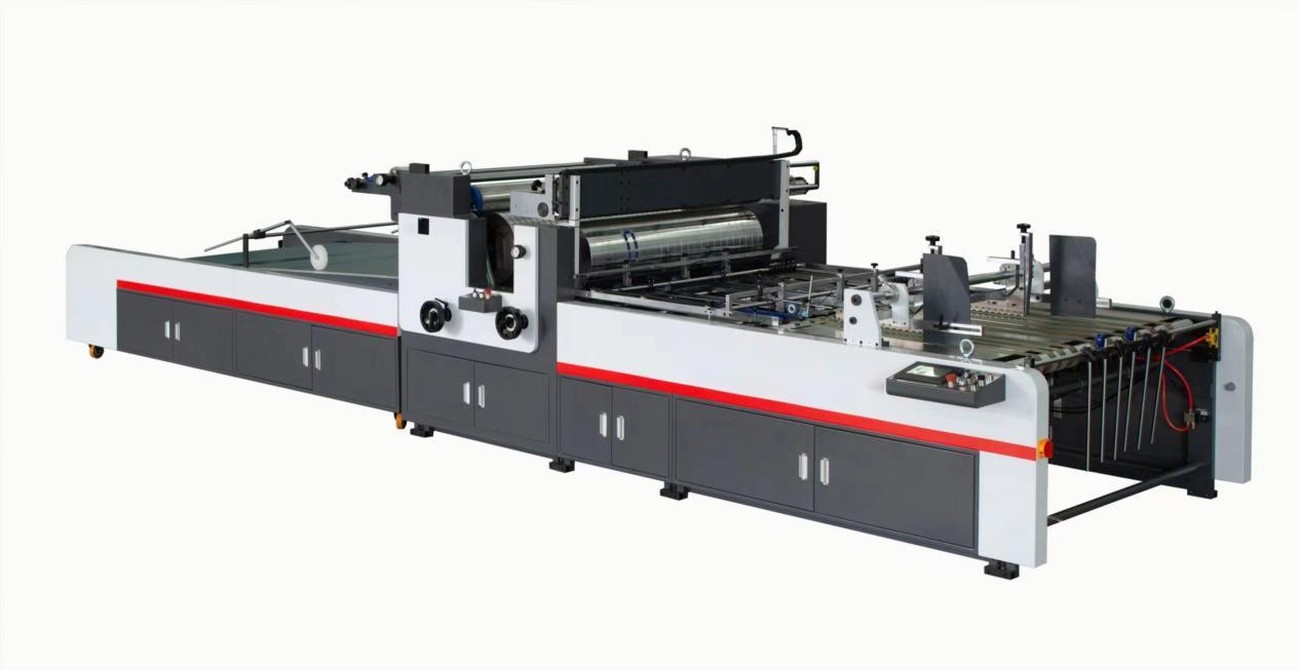

The TC-760G / 1100G / 1250G automatic window patching machine applies a transparent film window to folding cartons in one continuous pass: paper feeding, positioning, gluing, film application and paper collection. The whole machine platform is built on 30 mm thickened steel wall panels machined in a single setup, and the glue coating and film laminating rollers are turned on high-precision CNC lathes. Servo paper feeding, servo film cutting and an inflatable film shaft deliver consistent window position at speeds up to 20,000 sheets per hour, making it the standard choice for toy, cosmetic, food and tissue box production.
Request a Quote WhatsApp UsKey Features
- Five-station process: paper feeding, positioning, gluing, film application, paper collection
- Up to 20,000 sheets/h, servo paper feeding and servo film cutting
- 30 mm thickened steel main wall panel, machined in one setup
- Pull-out glue roller — easy cleaning, partial gluing by window size, glue roller rises and falls automatically
- Patented hob double-shear film cutting: length and width adjustable while running, noiseless knife change
- Imported Malaysian feed belts with pallet-type intermittent feeding — no double sheets or empty sheets
- Delta PLC and touch screen, Schneider contactors and relays, OMRON photoelectric sensors
- CAM film cutting unit for tissue box openings (optional)
Machine in Operation
Coming soon
Video of the TC-760G / 1100G / 1250G running on our factory floor will be published here. Request a live video call or a raw operation clip via WhatsApp.
Get the Best Price on the TC-760G / 1100G / 1250G
Tell us your material, sheet size and target output — our engineers reply within 24 hours with a machine recommendation, specifications and FOB pricing.
Specifications
| Item | TC-760G / 1100G / 1250G |
|---|---|
| Model Options | TC-760G / TC-1100G / TC-1250G |
| Max. Sheet Size | 760×740 / 1100×740 / 1250×740 mm |
| Min. Sheet Size | 80×80 mm |
| Max. Film Size | 520×420 / 860×420 / 960×420 mm |
| Min. Film Size | 40×30 mm |
| Film Thickness | 0.03–0.35 mm |
| Max. Working Speed | 20,000 sheets/h (depends on product size) |
| Cardboard Thickness | ≤ 5 mm |
| Suitable Sheet Thickness | 150–1500 g/m² |
| Total Power | 9 kW |
| Machine Weight | 2600 / 2800 / 3000 kg |
| Overall Dimensions | 5300×1800×1600 / 5300×1960×1600 / 5300×2100×1600 mm |
| Dimensions with Roller Pulled Out | 5300×2600×1600 / 5300×2700×1600 / 5300×2800×1600 mm |
* Specifications subject to change without prior notice. Contact us for the latest datasheet.
Detailed Unit Description
HMI + PLC Digital Control
Touch screen with PLC host computer digitally sets film length, counting and machine parameters — no mechanical adjustment needed when changing jobs.
Servo Paper Feeder
Pure imported wear-resistant belts driven by a high-performance servo motor keep sheet output stable at high speed, eliminating double and empty sheets.
Precise Push Gauge Positioning
Imported NBR rubber conveying wheels avoid indentations, scratches and tearing. Malaysian high-toughness belts and photoelectric tracing keep feeding accurate.
Pull-Out Gluing Unit
The rubber roller pulls out for easy glue cleaning. Gluing can be limited to the window area, sheets are detected during running, and the roller rises/falls automatically.
Hob Double-Shear Film Cutting (Patented)
Servo-controlled twin rotating rollers shear the film to an exact length. Film position can be adjusted front/back/left/right without stopping, with quick, noiseless knife changes.
Non-Stop Film Roll Adjustment
The full film roll mounts on the film shaft with left/right adjustment while running. Inflatable shaft and tapered sleeves are optional.
Tissue Box CAM Cutting (Optional)
A CAM structure intermittently cuts film for boxes that need an opening, such as tissue boxes — selected according to product.
Independent Paper Collection
The receiving platform is driven by its own micro-servo motor: platform angle, lift/lower, speed and product count are all set from the panel.
